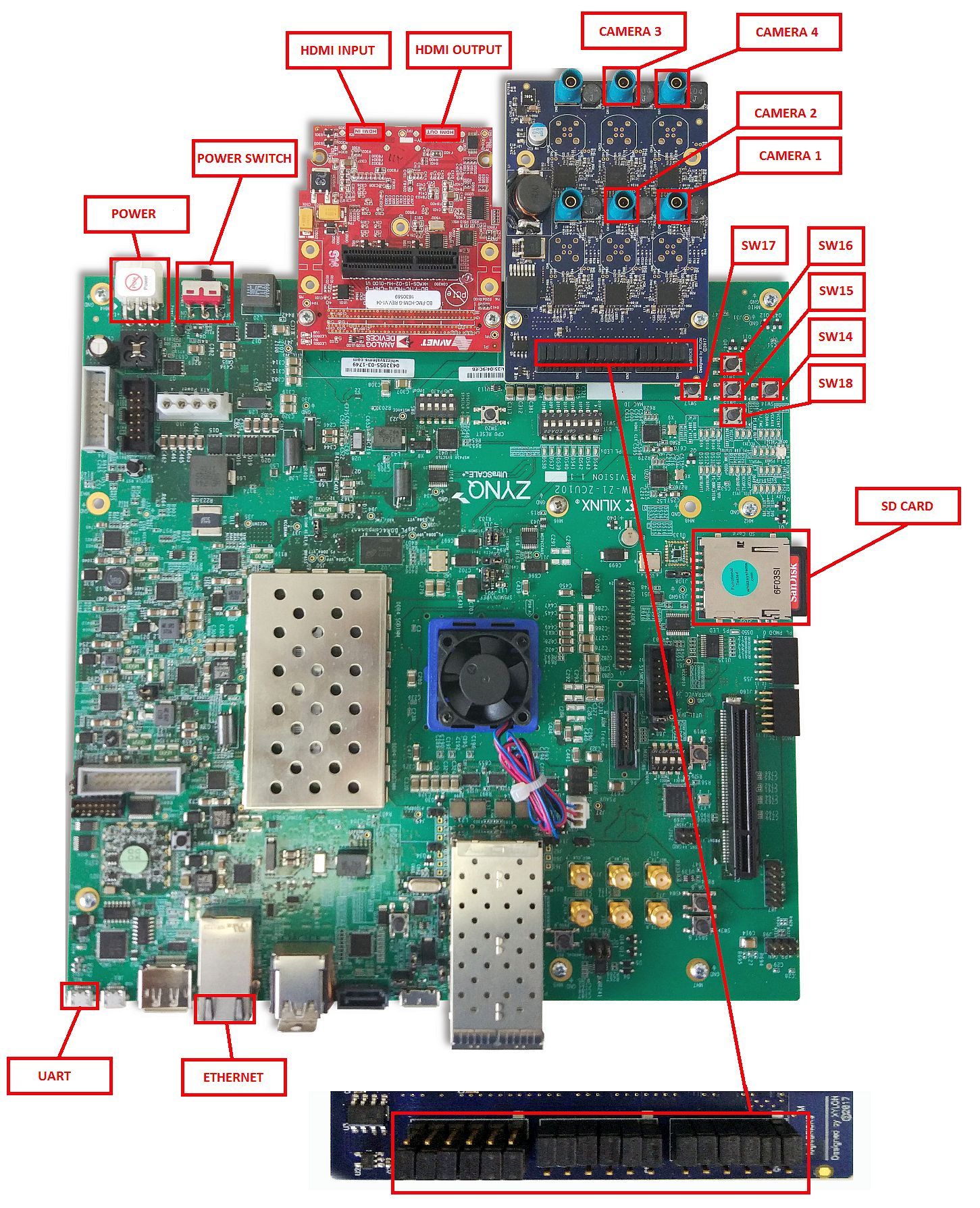

  • Connect the FMC boards to the Xilinx ZCU102 board as shown in Figure below
  • Fasten the FMC add-on board with the provided screws
  • Use the provided high-speed FAKRA cables to connect cameras to the camera FMC board
  • Make sure to remove plastic protective caps from camera lenses
  • Insert the provided SD card to the SD card slot
  • Connect the power supply cable to the power connector
  • Connect the FullHD monitor by the HDMI cable to the HDMI connector on the ZCU102 board
  • Power up the ZCU102 board by switching on the power switch

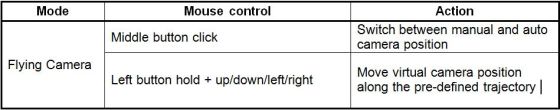

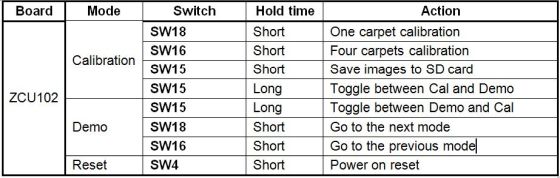

Quick start with the logiADAK MPSoC Hardware Platform for Xilinx Zynq UltraScale+ MPSoC based ADAS

Click Photo to Enlarge!

Quick start with the logiADAK MPSoC Hardware Platform for Xilinx Zynq UltraScale+ MPSoC based ADAS

Quick start with the logiADAK MPSoC Hardware Platform for Xilinx Zynq UltraScale+ MPSoC based ADAS









Xylon video cameras are enclosed in waterproof aluminum housings sealed with rubber gaskets to ensure a weather-proof rating of IP67. Mounted camera modules include a short video cable with the Rosenberger connector. Rugged metal construction enables safe and easy test vehicle installations.

<= Click to check the basic dimensions [millimeters]
